Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling

Product Categories
Henan Xrido Environmetal Protection Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling

Place of Origin : Henan, China

Brand Name : HJ

MOQ : 1

Price : $4,300-6,850

Power : 55 kW

Weight : 9000 kg

Core Components : PLC, Engine, Bearing, Gearbox, Motor

Material Processed : Stainless Steel, Brass / Copper, Alloy, Carbon Steel, Aluminum

Operating Mode : Automatic

Daily Processing Capacity : 5-8 tons

Wire Purity : ≥95%

Blade Diameter : 200-600 mm

Blade Thickness : 20-100 mm

Feed Inlet Size : 500x480 to 3000x1800 mm

Machine Dimensions : 2800x1300x1850 to 8600x3500x4000 mm

Recovery Rate : ≥98%

Dust Collection : Fully enclosed design

Input Materials : Scrap Steel Iron

Spare Parts : 5 piece

Contact Now

Product Description
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling

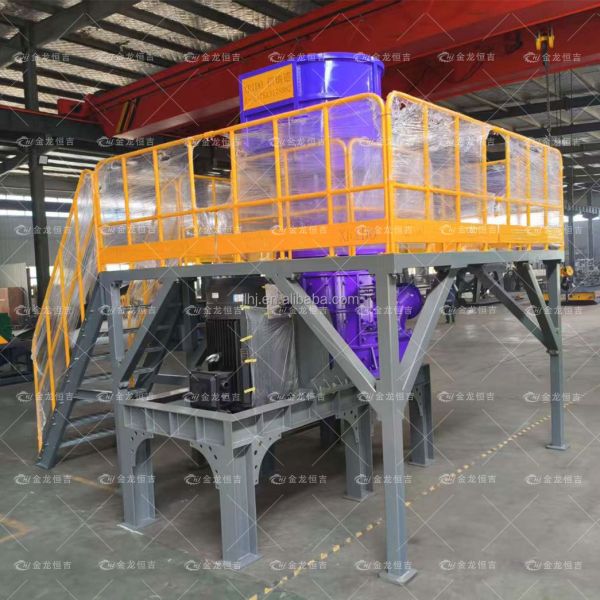

This steel wire crushing equipment is specially designed to solve the residual carbon and rust on the wire after pyrolysis. It integrates high-efficiency crushing, deep rust removal and intelligent sorting, with a daily processing capacity of 5-8 tons and wire purity ≥95%. Equipped with tungsten steel blade and secondary vertical shaft pulverizer, the output steel wire meets the standard of direct smelting or metal reprocessing.
Technical parameters
model
size(L*W*H)(mm)
feed inlet size(mm)
blade diameter(mm)
blade thickness(mm)
power(kw)
weight(kg)
SZ-500
2800*1300*1850
500*480
200
20
11*2
2200
SZ-800
3000*1300*1850
800*480
200
20
15*2
2500
SZ-1000
3300*1900*2200
1000*690
300
40
22*2
5200
SZ-1200
3600*2000*2200
1200*690
330
40
30*2
6400
SZ-1500
4180*2100*2400
1500*690
550
50/75
55*2
9000
SZ-1800
5800*2400*3300
1800*1206
550
50/75
75*2
13600
SZ-2000
6400*2700*3500
2000*1490
600
50/75
90*2
20100
SZ-2500
7500*3200*3800
2500*1800
600
75/100
110*2
25000
SZ-3000
8600*3500*4000
3000*1800
600
75/100
160*2
31000
Remarks:
1. The number of blade claws, diameter and thickness can be customized according to the type of material and the size of the discharge;
2. The output of the equipment will be different due to different material types and discharge scales.
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling

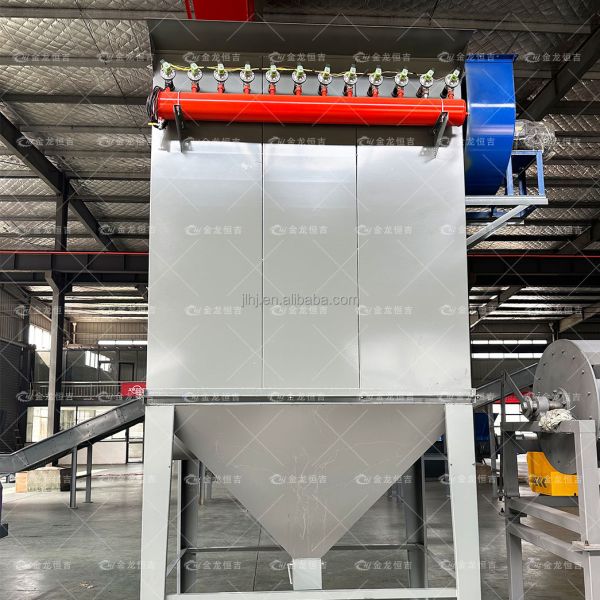

Designed specifically for steel wire after burning of waste tires: an integrated solution to solve the problem of coke residue and rust on the surface of steel wire, with a recovery rate of ≥98%. Industrial-grade processing capacity: 1200-type shredder has a daily processing capacity of 2-4 tons per machine, and the purity of crushed steel wire is ≥95%. Environmental compliance: fully enclosed design + dust collection system, in line with environmental standards for solid waste disposal.
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling
COMPANY PROFILE
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling
Automatic Steel Wire Shredder with Tungsten Steel Blade and ≥98% Recovery Rate for Tire Wire Recycling
Q: Do you accept Custom-made?
A: Yes, we can custom the machine according to clients requirements.
Q: How can i get a suitable machine?
A: Tell us your requirements, such as raw material, out put size, capacity etc, our engineer can recommend the suitable configuration and provide quotation for you.
Q: How long is your delivery time ?
A: 1 set for normal machine needs about 5 working days, if 1 or more containers, needs about 20 working days.
Q: How long is the warranty?
A: 1 year since the date of shipment, if parts failure or damage(because of the quality problem, except wearing parts), our company will provide these parts for free.
Q:What is your payment term?
A: T/T 100% before shipment, L/C at sign, or Trade Assurance order recommended.
